Category: Commercial Water Treatment

Commercial Water Treatment

Showing all 13 results

  • Bottle Water Washing, Filling and Capping Machine Model BF2000

    5,000,000.00 4,900,000.00

    Product Feature:

    This production line completes bottle semi-auto washing, filling, capping, label shrink in one operation. It applies to fill plastic bottle or glass bottle with liquid like water, wine and juice and so on, whose capacity is 2000BPH (standard 500ml). Bottle volume varies from 300ml to 1500ml. This production line fits to small or medium amount productivity.

    The washer is semi automatic bottle-washing machine. It is widely used in beer, wine, juice, soy source, vinegar and products like that. It is especially suitable for small or medium amount productivity. Bottles need man-feed, but other jobs are done by machine automatically.

    The filler can accurately fill liquid without gas, such as pure water, white spirit, wine, fruit juice and fruit syrup. It also can fill other liquid, such as vinegar, milk and pesticide. The filler works in sealed condition without pollution from outside.

    The machine can automatically seal cylinder-type bottles with plastic or aluminum theft-proof capsule. With perfect performance, reliable operation, easy maintenance, it is widely used in automatic packing lines for various kinds of wine and drink.

    This label shrink machine adopts infrared radiation to shrink PVC/POP film label in the middle of bottle, with Intelligent digital temperature control of shrink tunnel. Machine is able to be designed to shrink label on the top of bottle as your requirement

    Technical Specifications:

    Model & Name CP-30 Washer



    GC-12 Filler YQX-3 Capper BSL1535 Labeler Conveyor
    Capacity 1500-2000 BPH 1500-3000BPH 2000BPH 1500-2000BPH
    Working Position 30 Header 12 Header 1 Header
    Volume of bottle 200-1500ML 200-1500ML 350-1500ML 200-1500ML
    Power 0.55Kw 220/380V



    0.75KW, 220V/380V 0.55KW, 220V/380V 3.5KW, 220V/380V
    Dimension(mm) 1000x1000x1400 1050*950*1900 1050*950*1900 1050*600*800  4 meters
    Weight 180KGS 450KGS 500KGS 65KGS
    Add to cart
  • Bottle Water Washing, Filling and Capping Machine Model BF2000A Full Automatic

    5,700,000.00 5,500,000.00

    Description:

    BF2000A Automatic Bottle Washing, Filling And Capping Line

    Products Feature:

    The line is composed of automatic bottle washing, filling, capping and label shrinking machine, used for PET plastic bottles, glass bottles, can fill mineral water, fruit juice, soy sauce, wine and so on. Machine adopt very simple electric controller and very easy adjustment, suit for various types of bottles, It is the ideal production line for beverage makers.

    The washer can automatically finish the whole process: inside-bottle-washing and draining-out-bottle. It is the most advanced and applied machine for wash the plastic polyester bottle and glass bottle. It can make up of an automatically production line with bottle filler and sealer.

    The filler can accurately fill drink without gas, such as pure water, white spirit, wine, fruit juice and fruit syrup. It also can fill other liquid, such as vinegar, milk and pesticide. The filler works in sealed condition and without pollution

    The capper can automatically seal various size of cylinder-type bottle that matches plastic

    theft-proof capsule. With perfect performance, reliable operation, easy maintenance, it is

    widely used in automatic packing lines for various kinds of wine and drink.

    This label shrink machine adopts infrared radiation to shrink PVC/POP film label in the middle of bottle, with Intelligent digital temperature control of shrink tunnel. Machine is able to be designed to shrink label on the top of bottle as your requirement.

    Technical Specification:

    Model ZPC-12 Washer GC-12Filler YQX-3 Capper
    Capacity 2000-2500BPH 1500-3000BPH 2000BPH
    Working Position 12 12 1
    Volume of bottle 200-1500ML 200-1500ML 350-1500ML
    Power 0.75Kw 220/380V 0.75Kw 220/380V 0.55Kw 220V
    Dimension 135x135x190CM 175x115x200CM 175x115x200CM
    Weight 800Kgs 900Kgs 900Kgs
    Model BSL1535 Labeler Conveyor
    Capacity 1500-2000BPH 100-2500BPH
    Volume of bottle 200-1500ML
    Power 3.5KW 220/380V 0.75KW 220/380V
    Dimension 105x60x80CM 100x72x220CM
    Weight 80Kgs 200Kgs
    Add to cart
  • Capping Machine JGS-980/880

    320,000.00 295,000.00

    WORKING SPEED:1000BOTTE/HOUR
    CALIBRE :20-35mm
    BOTTLE HIGH:20-350mm
    WEIGHT :82kgs
    EXTERNAL SIZE:700*340*1260mm

    Add to cart

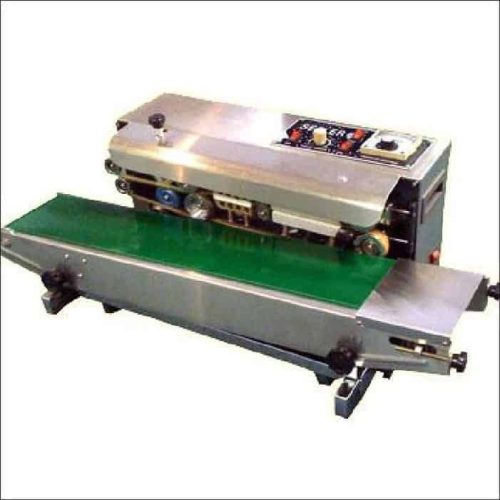

  • Continuous Band Sealer Model FR-900

    300,000.00 250,000.00

    FR series continuous film sealing machines finish continuous carrying, sealing and printing in one operation. The machine can be made horizontally, vertically or with stand feet. It adopts electronic constant temperature mechanism and stepless speed regulating transmission motor. It can seal plastic film in various kinds of materials.

    Specification:

    Model FR-900
    Voltage 220V 50-60HZ
    Power 500W
    Sealing speed 0-12m/min
    Sealing width 6-12mm
    Temperature range 0-300
    Max. conveyor loading 3 kgs
    Printing category Steel wheel printing
    Weight 25 kg
    Machine size 1060X470X380mm
    Add to cart
  • Dingli Packing Machine AS-1000

    700,000.00 600,000.00

    Ideal for Water Treatment company,  pure water dealers and Hotels

    This machine widely used to pack all liquid products such as water, milk, soybean milk, sauce, vinegar, yellow wine, all kind of drink with film.

    The whole process can be accomplished automatically, such as ultraviolet sterilization, bag determination, date printing, quantitative filling, enveloping, cutting, counting, and so on.

    The temperature of heat-sealing is controlled automatically, the production is very quick, the machine adopts stainless steel shell, and the sanitation is guaranteed.

    Add to cart
  • Foot Stamping Sealing Machine PSF Series

    100,000.00 90,000.00

    The PSF series foot stamping sealing machine possesses all functions of other simple foot stamping sealing machinery.
    It can seal polythene, poly propylene and multi-layer compound plastics.
    Height adjustable shelf for bag makes sealing easier.
    Up and down sealing earns high efficiency.
    Strong aluminum body.

    Sealing Width                                               8mm
    Heat Time                                               0.2-2s
    Packing size                                   800×5 30x 250mm
    Add to cart
  • Granule Packaging Machine Model DXDK-40

    2,700,000.00 2,550,000.00

    Features:


    1.Back sealing, three-side sealing, four-side sealing packing method.

    2.The packing data and adjustment can be displayed on the screen. The user can directly operate it on it.

    3.Assembled with a photoelectric controller to ensure that its packing bag figure are perfect.

    4.It can automatically finish making-bag, metering, filling, sealing, cutting, counting and printing batch number.

    5.The body and the parts touching the material are made of stainless steel.

    Suitable material:

    It is applicable for packing foodstuff, medicine, chemical industry, seed, and the loosing non-sticking granule daily chemical industry.



    Technical Specifications

    Type:
    Multi-Function Packaging Machine
    Function:
    Filling, Sealing
    Application:
    Chemical, Commodity, Food, Machinery & Hardware, Medical
    Packaging Type:
    Bags, Film, Pouch, Stand-up Pouch
    Packaging Material:
    Plastic
    Automatic Grade:
    Automatic
    Driven Type:
    Electric
    Voltage:
    220V
    Power:
    1.4KW

    Dimension(L*W*H):

    800*1000*1800
    Certification:
    CE Certification
    After-sales Service Provided:
    Overseas third-party support available
    Product name:
    Granule Packing Machine
    Packing speed:
    40-60bags/min
    Bag type:
    3 Sides Seal
    Material:
    Stainless Steel
    Packing material:
    Plastic Film
    Main Function:
    Automatic Form
    Add to cart
  • HDPE/LDPE Plastic Film Blowing Machine set SJ-55/FM-800 Extruder

    10,500,000.00 10,200,000.00

    Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance, The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polythene (LDPE), high density polythene(HDPE) and linear low density polythene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

    Optional devices:
    1). Auto loader
    2). Film surface treater
    3). Air compressor
    4). Mechanics screen changer

      Model   SJ-FM50/600   SJ-FM55/800   SJ-FM60/1000   SJ-FM65/1200
      Suitable Material    HDPE, LDPE, LLDPE
      Film Width (mm)   300-600   300-800   400-1000   600-1200
      Film Thickness (mm)   0.01-0.05   0.01-0.05   0.01-0.05   0.01-0.05
      Max. Extrusion Output (kg/h)   55   70   85   110



      Screw Diameter (mm)   Φ 50   Φ 55   Φ 60   Φ 65
      Screw L/D ratio   28: 1/30: 1
      Screw Material   SACM-645/38 CRMOALA
      Cylinder Material   SACM-645/38 CRMOALA
      Cylinder Cooling (kw)   0.25     0.25X2   0.25X2   0.25X3
      Driving Motor (kw)   11   15   18.5   30
      Temperature Control   3   3   3   4
      Average Power-consume (kw)   14   22   26   37



      Die Size (mm)   Φ 60/80   Φ 80/100   Φ 100/120   Φ 100/150
      Φ 100/150 Φ 150/200 Φ 200/250 Φ 250/300
      Temperature Control   3
      Air Ring   1
      Air Blower (kw)   3   3   3   4
      Center Steady Stick   2



      Pinch Roller (Dia. width) mm   650   850   1100   1300
      Height Adjustable Type   700
      Take-up Speed (m/min)   10-100   10-100   10-100   10-80
      Take-up Motor (kw)   0.75   0.75   1.1   1.5



      Type   SURFACE FRICTION TYPE
      Winding Motor (N. m)   5/10   5/ 10   10/16   10/ 16
      Winding Speed (m/min)   10-100   10-100   10-100   10-80
      Cover Dimension (m)   5.0*2.1*4.5   5.0*2.3*4.8   5.5*3.3*5.5   5.8*3.6*6
    Add to cart
  • HP-241 Hot Stamping Coding Machine

    110,000.00 105,000.00

    The features of  hot stamping coding machine:

    1) Printing type: ribbon printing, manual operation, single-line and double-line available, printing position optional

    2) Range of application: printing clear date code, batch number and weight on plastic bags, paper cases and various trademark labels

    3) As a stand alone coder, it is suitable for commercial production



    Electrical requirement 220V, 50Hz, 200W
    Print speed 20 – 50 times/minute
    Net Weight 3kg
    Add to cart
  • Impulse Hand Sealer PSF Series

    20,000.00 17,000.00

    FEATURES:

    • Impulse sealing – no warm up time needed
    • Wide meshed seal width (10mm / .39″)
    • Timer for variable sealing materials
    • Can seal plastic tubes (prior testing required)

    Impulse hand sealers seal poly bags and any thermoplastic materials quickly and efficiently without a warm-up time.

    Specifications:

    Header 1 Header 2
    Seal Length 8″
    Seal Width 10MM
    Seal Type Meshed
    Power 220V / 1000W
    Weight (lbs) 14
    Add to cart
  • Liquid Filling Machine

    600,000.00 550,000.00

    Features:

    1.the filling range,can be used for filling of 1L-5L or 0.1L-1L products.

    2.using the double speed filling technology,improving production efficiency,preventing the material spill out.

    3.can vacuum sucking,ensure no leakage during filling production process of filling head.

    4.the adjustment of filling volume is convenient,can be set directly on the touch screen.

    5.driven by the cylinder piston

    6.optional servo filling system.

    Power supply 220V/380W 50-60Hz
    Compressor 0.5-0.8Mpa
    Add to cart
  • PET Blower Model HZ-880

    4,500,000.00 4,300,000.00

    HZ-880 Bottle Blowing Machine

    HZ-880 Stretch Blow Molding Machine is suitable to produce different shapes of PET/PC/PE bottles. It can blow from 100ml to 6000ml bottles and is widely used to produce mineral water bottles, carbonated soft drink bottles,juice bottles,medical bottles, cosmetic and oil bottles etc.

    1,Infrared lamps adopted in the pre-heater ensures PET preforms being heated evenly.
    2,Mechanical-double-arm calmping ensures mould being tightly closed under high pressure and high temperature.
    3,Pneumatic system consists of two parts. pneumatic acting part and bottle blowing part in order to meet different requirements for both acting and blowing. It provides sufficient steady high pressure to blowing. It provides sufficient steady high pressure to blow large irregular shape bottles.
    4,Equipped with silencer and oiling system to lubricate the mechanical pars of the machine.
    5,Operated step-by-step and in semi-auto mode.
    6,Wide-mouth jar and hot-fill bottles can also be made.

    Specification:

    TYPE
    ITEM
    MEASUREMENT
    HZ-880 Combined type
    HZ-880 Standard type
    END PRODUCT
    Material
    /
    PET/PP/PE/PC
    PET/PP/PE/PC
    Volume
    L
    0.05-2.5(2-cavity)
    3-6(1-cavity)
    0.05-2.5 (2-cavity)
    3-6 (1-cavity)
    Theoretical output
    Pcs/h
    0.05-2.5L/1700
    3-6L/800
    0.05-2.5L/850
    3-6L/400
    Max.length
    mm
    360
    360
    max.diameter
    mm
    180
    180
    MOULD PLATE
    Max.mould plate
    dimension(L×H)
    mm
    420×500
    420×500
    Max.mould thickness
    mm
    160-240
    160-240
    Clamping force
    KN
    90
    90
    Mould opening stroke (adjustable)
    mm
    200
    200
    AUXILARY
    High pressure
     Compressor  M3/Mpa
    KW
    >=0.70/3.0×1set 22
    >=0.7/3.0×2sets 22
    Precision air filters
    M3/Mpa
    >=1.0/3.0×2pcs
    >=1.0/3.0×2pcs
    MAIN MACHINE ELECTRICITY
    Power
    KW
    12
    12
    Voltae/Frequency
    V/HZ
    220-380/50-60
    MACHINE SIZE
    AND WEIGHT
    Main body dimension(L×W×H)
    M
    1.45×0.6×1.75
    1.45×0.6×1.75
    Main body weight
    T
    0.6
    0.6
    Conveyor dimension(L*W*H)
    M
    1.40×0.62×1.25
    1.40×0.62×1.25
    Conveyor weight
    T
    0.22
    0.22
    SAFTY
    Auto-emergency alarm
    SAFETY INTER-LOCKING DEVICE
    Add to cart
  • Reverse Osmosis System (4 Membrane)

    1,650,000.00 1,580,000.00

    The Pure Water Production Line Is Composed Of Per-Filter Of Sand Filter
    Carbon Filter
    Ion-Exchanger And Reverse Quality
    Easy Operation And Maintenance
    Osmosis And Ozone Generator
    It Is Ideal Equipment For Pure Water Production As Simple Techniques
    Water Ozonizer

    Add to cart
